Homogenizing perfected. Swiss made dispersing.
Kinematica™ is been leading in the field of dispersing and homogenization processing for both laboratories and production plants since 1962.
Kinematicas broad portfolio of products can address almost every dispersing application for the pharmaceutical, cosmetic, chemical, food and biotech industry.
Stainless steel stand with base, height-adjustable bracket for supporting the drive and base mounting.
Depending on the sample, even finer results can be achieved by grinding with two or more sieves with progressively smaller hole sizes.
Product Type | Sieve |
---|---|
Material | Stainless Steel |
Consists of a rotor with three hardened strike hammers and a grooved stator. During the grinding process, the sample is spun around the grinding chamber and struck until the desired particle size has been achieved. The ground sample passes through the sieve into the collection container.
The most diverse generators on the market, the POLYTRON™ dispersing aggregates are solution driven, designed specifically with the customer's adaptive markets in mind. Polytron aggregates vary in design, for process and sample purposes, and shaft length, for differing mixing vessel purposes.
For Use With (Equipment) | Polytron™ 1200 E, 1300 D, 2500 E Homogenizers |
---|---|
Product Type | Probe |

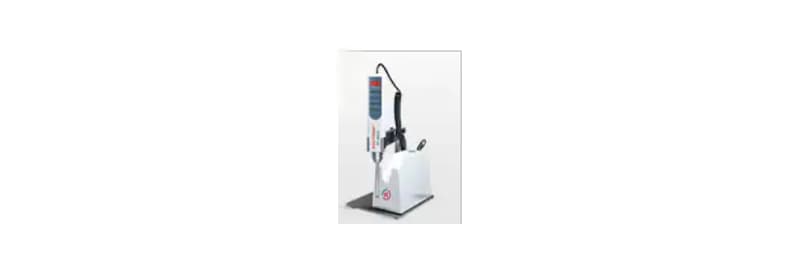

Choose the KINEMATICA Polytron PT 1300 D for your lab. This versatile hand-held homogenizer combines quality, convenience and high performance for rapid, reproducible sample processing and consistent sample-to-sample uniformity.
Volume Range (Metric) | 0.1 to 100 mL |
---|---|
Volume Range (English) | 0.003 to 3.381 oz. |
Height (Metric) | 4.5 cm |
Width (English) | 1.57 in. |
Length (Metric) | 21 cm |
Length (English) | 8.26 in. |
For Use With (Application) | Ideal for pulverizing plant and animal tissue, grain and seed, soil extraction, DNA/RNA extraction, Karl Fischer sample prep, toxicology and food science |
Width (Metric) | 4 cm |
Includes | Handheld homogenizer, 5, 7, 12 mm Stainless Steel generator and 7 mm disposable generator |
Dimensions (L x W x H) | 8.26 x 1.57 x 1.77 in. (21 x 4 x 4.5 cm) |
Model | PT 1300 D |
Temperature Range (English) | 32°F to 104°F |
Packaging Quantity | 1 Ea. |
Temperature Range (Metric) | 0°C to 40°C |
Display | LED |
Height (English) | 1.77 in. |
Consists of 3-armed rotor with cutting knives and stator with 3 cutting bars / tool included
For the mixing, dispersing, homogenizing, emulsifying and size reduction of cuttable materials.
For Use With (Equipment) | MB 550 Laboratory Mixer |
---|---|
Product Type | Mixing Head Attachment |
Packaging Quantity | 1 Ea. |
Material | Borosilicate Glass |
Kinematica Polytron Standard Dispersing Aggregates, Bottom Type: Saw tooth, Diameter: 12 mm, For Use With: PT 1200 E, PT 1300 D and PT 2500 E, Length: 157 mm, Stainless Steel, Sample Volume: 2 to 250 mL
Cloverleaf internal shape effectively interrupts the flow in the radial direction and generates additional counteracting force.
Mixing attachment for MB 800 consists of stainless steel, gasket and blade head as well as lid with opening for material addition.
Blade Material | Stainless Steel |
---|---|
For Use With (Equipment) | MB 800 |

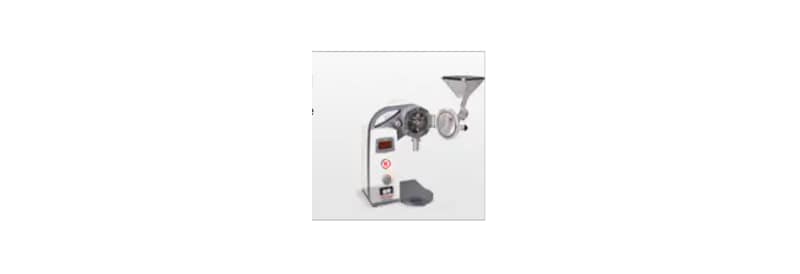

Polymix™ MFC 90 D features easy to change grinding attachments and sieves extending the range of samples that can be processed. Simple handling, high user safety and efficient grinding results are just a few of the advantages of this mill.
Dimensions (L x W x H) | 325 x 251 x 480 mm |
---|---|
Voltage | 230 V |
Hertz | 50/60 Hz |
Watts | 1000 W |
Weight (Metric) | 12 kg |
Plate stand with two support rods. The drive unit‘s height can be adjusted. For more security, the drive unit cannot be adjusted horizontally.
For use with Polytron™ PT 2500 E Stand Dispersion Unit.
Designed for quick and easy service of Polytron™ generators.
Compact,economical homogenizer with 1200 W motor for processing larger samples. Versatile design allows for samples as small as .1 ml and up to 4500 ml with appropriate dispersing aggregate. Over 25 aggregates are available for almost any dispersing or homogenizing application.
Kinematica offers a complete range of immersion dispersers and batch homogenizers for use in the lab, pilot plant or production facility. Accommodating sample volumes ranging from 0.05 mL up to 10 L, powerful drive units combine with efficient dispersal aggregate tools to solve every application requirement in the pharmaceutical, chemical, cosmetic, food and life science sectors.

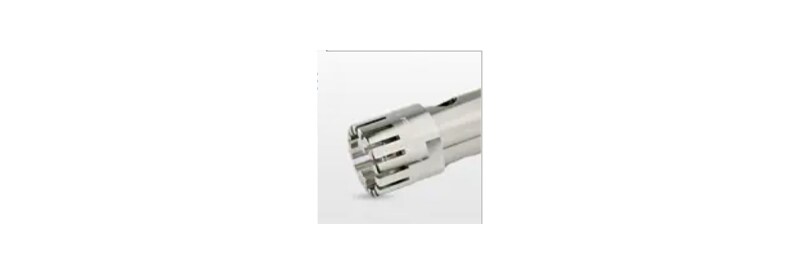

Standard dispersing aggregates come with the Kinematica EasyClean (EC) design, and rotor/stator geometries with two, four or six teeth rows. This is all you will need for most standard applications during the preparation of samples, formulation development and small scale production. Up to 20 mm diameter, the stator has embedded cutting teeth to optimise pre-crushing of the sample. An enclosed ring design provides optimum protection for the teeth and prevents bending and distortion.
Enjoy discounts up to 78% on top-quality lab equipment and upgrade your laboratory with the best appliances at the lowest prices.
Kinematicas broad portfolio of dispersing and homogenizing systems are based on our own rotor/stator technology. This dynamic mechanical system allows the processing of physical phases such as liquid-liquid, liquid-solid or liquid-gaseous to produce the finest dispersions, emulsions, suspensions and foams. The rotor and stator together comprise the generator, the critical core component whose selected geometries process the physical phases of the sample. Thanks to decades of experience, Kinematica can supply your industry with the broadest range of generators for a wide range of applications. What's more, specialised bespoke generator geometries can be designed, engineered and produced in close cooperation with you, our customers.
Our immersion systems (POLYTRON™) are manufactured to seamlessly fit and serve most batch/lot processing architectures. Our product design and wide range of accessories permit optimal positioning of the rotor/stator unit inside production batch vessels, helping to achieve the best operating performance possible.
